Description

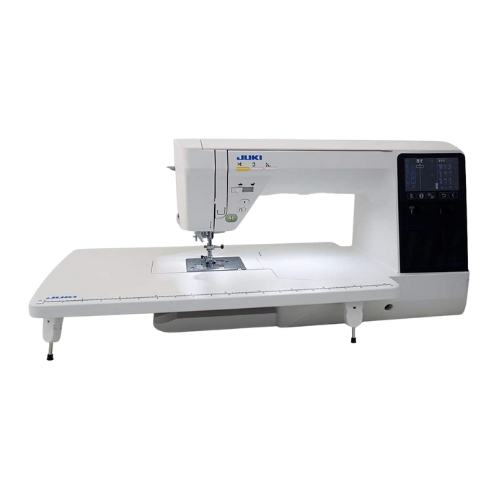

The next generation in JUKI Home Sewing Machines is setting a new standard with 12" of sewing space, digital tension, JUKI Smart Feed, and interchangeable single needle system. Continuing JUKI’s characteristic of commitment to high performance and functions, the HZL-NX7 Kirei (kee-ray) provides a wide sewing area, touchscreen interface, and a multitude of other functions! The HZL-NX7 was crowned with the name “Kirei” meaning “beautiful”, as a reflection of JUKI’s Japanese heritage. With captivating beauty, Kirei will bring high-quality and reliability to all of your sewing and quilting projects. Beautiful form, beautiful function
NEW INTERCHANGEABLE SINGLE NEEDLE SYSTEM
Users can now create perfect straight stitches with the revolutionary Single Needle System. Using the provided t-screwdriver, users can "pop" the standard feed dog and throat plate out to install the System. Then, attach the presser foot for an exclusive straight stitch experience and achieve precise sewing known previously only to JUKI industrial sewing machines.
NEW EQUIPPED WITH JUKI SMART FEED (JSF)
Additionally, users can engage the JUKI Smart Feed (dual feed function) to move in sync the top and bottom layer of fabric. Perfect for points, precision, and quilt layers. Please note that the presser feet with the square gap at the end can be used with JSF.
NEW FOOT LIFT FUNCTION
The Kirei HZL-NX7 is also equipped with a micro-lifter presser foot function. This function reduces uneven sewing on quilts and velvets. When the presser foot is raised, the feed dogs automatically lower for easy placement of fabrics. Users can also sew appliques with the pivot function.

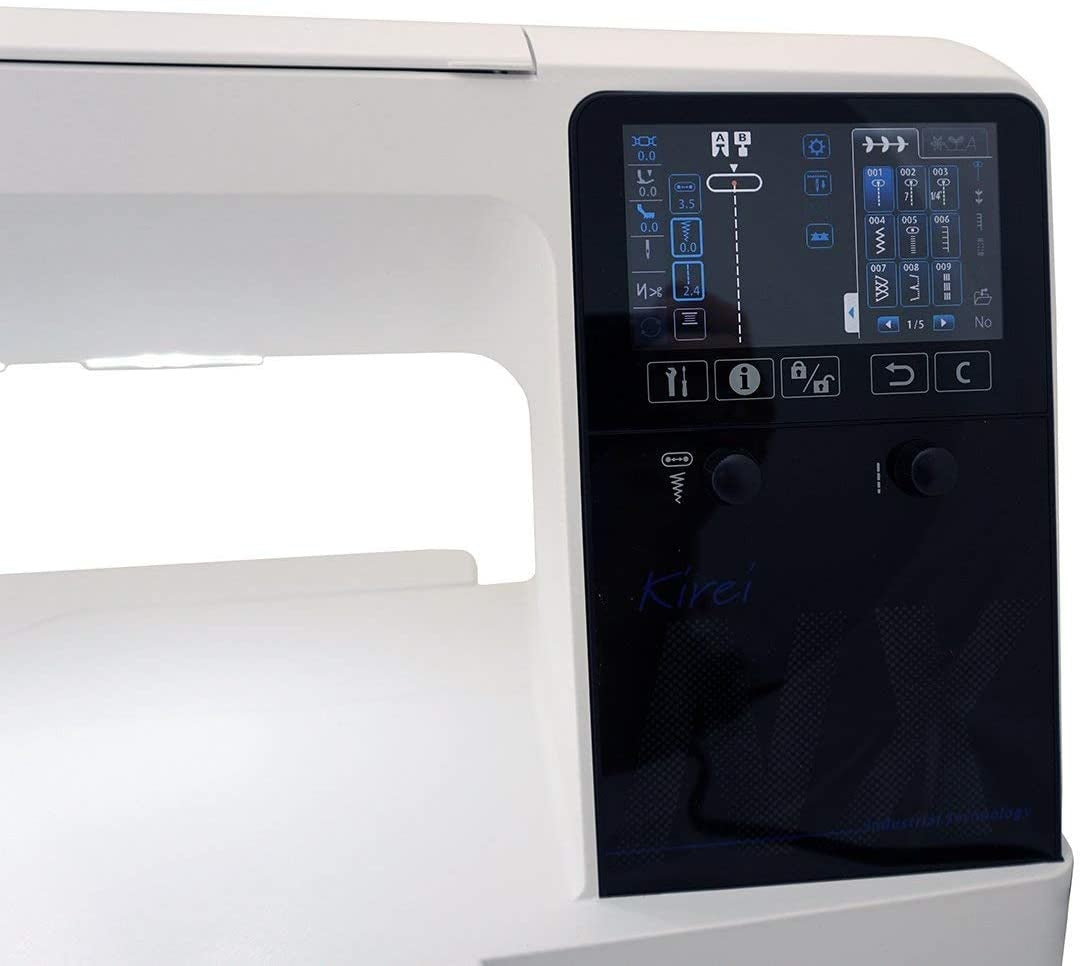

COLOR TOUCH PANEL
Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively.

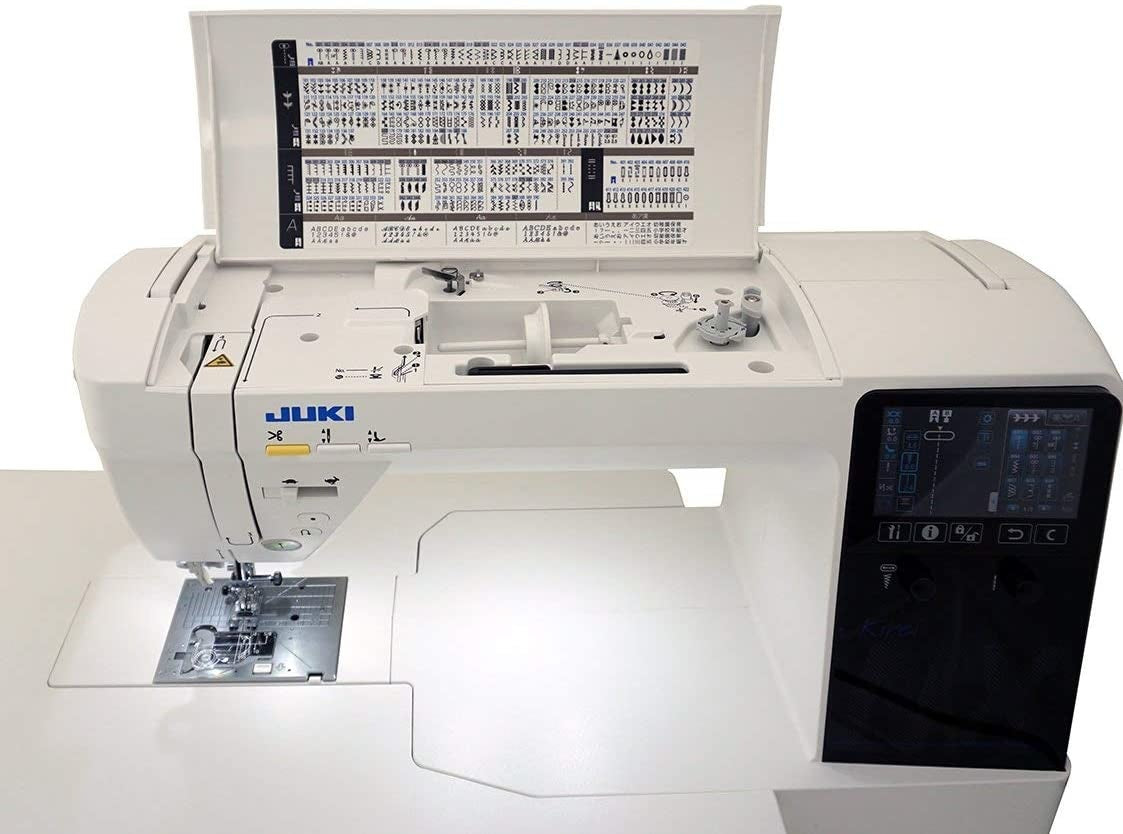

EASE OF ACCESS
Choosing a specific type of pattern just became easier.
BOBBIN THREAD COUNTER
The amount of bobbin thread used is counted based on the stitch length and number of stitches sewn.Bobbin thread breakage can be prevented since you will be warned when 20% of thread remains.
THREAD TENSION SETTING OPTIMIZED FOR THE PATTERN
The thread tension most suitable for the pattern and stitch length will be set.Sew beautiful seams without shrinkage even when sewing fine or dense stitching.
GUIDE
From touch panel, view instructions for main machine operations.Specify basic settings without even looking at the Instruction Manual.
JUKI DUAL FEED
The dual upper feed dogs can be installed and removed in a single step.The dual-feed design prevents uneven feeding and bunched stitching.

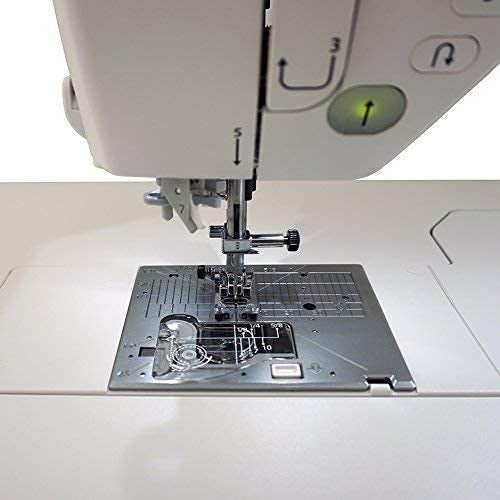

THROAT PLATE WITH GUIDE
An angle scale is provided in addition to a fine guide scale.Sewing at an accurate position from the fabric edge as well as piecing are both made easy.
ELECTRONIC KNEE LIFTING CONTROL MECHANISM
Raise the presser foot with a light knee operation.
ELECTRONIC FEED DOG CONTROLMECHANISM
Raise and lower the feed dogs from the touch panel. When the presser foot is raised, the feed dogs are lowered. In addition to allowing switching to free-motion sewing without removing the table, fabric can be smoothly removed without damage. Check settings and sewing conditions numerically and graphically.The various settings can be specified intuitively.

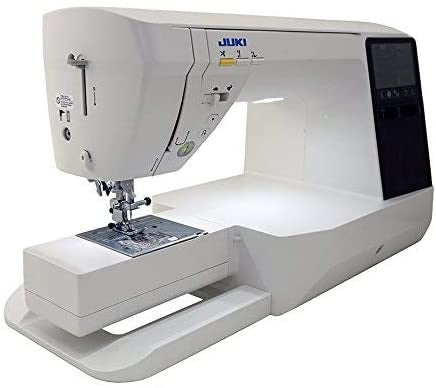

All accessories can be stored in the accessory box and are immediately available when needed.
Specifications
- Number of Stitch Patterns: 351
- Number of Available Fonts: 4
- Buttonhole: Automatic (sensor system) with clamping plate
- Max. stitch speed: 1050 sti/min
- Feed Mechanism: Box Feed mechanism
- Dimensions (mm): 445(W) x 290(H) x 210(D) mm
- Arm Size: 304 120 mm
- Weight 14.1 kg

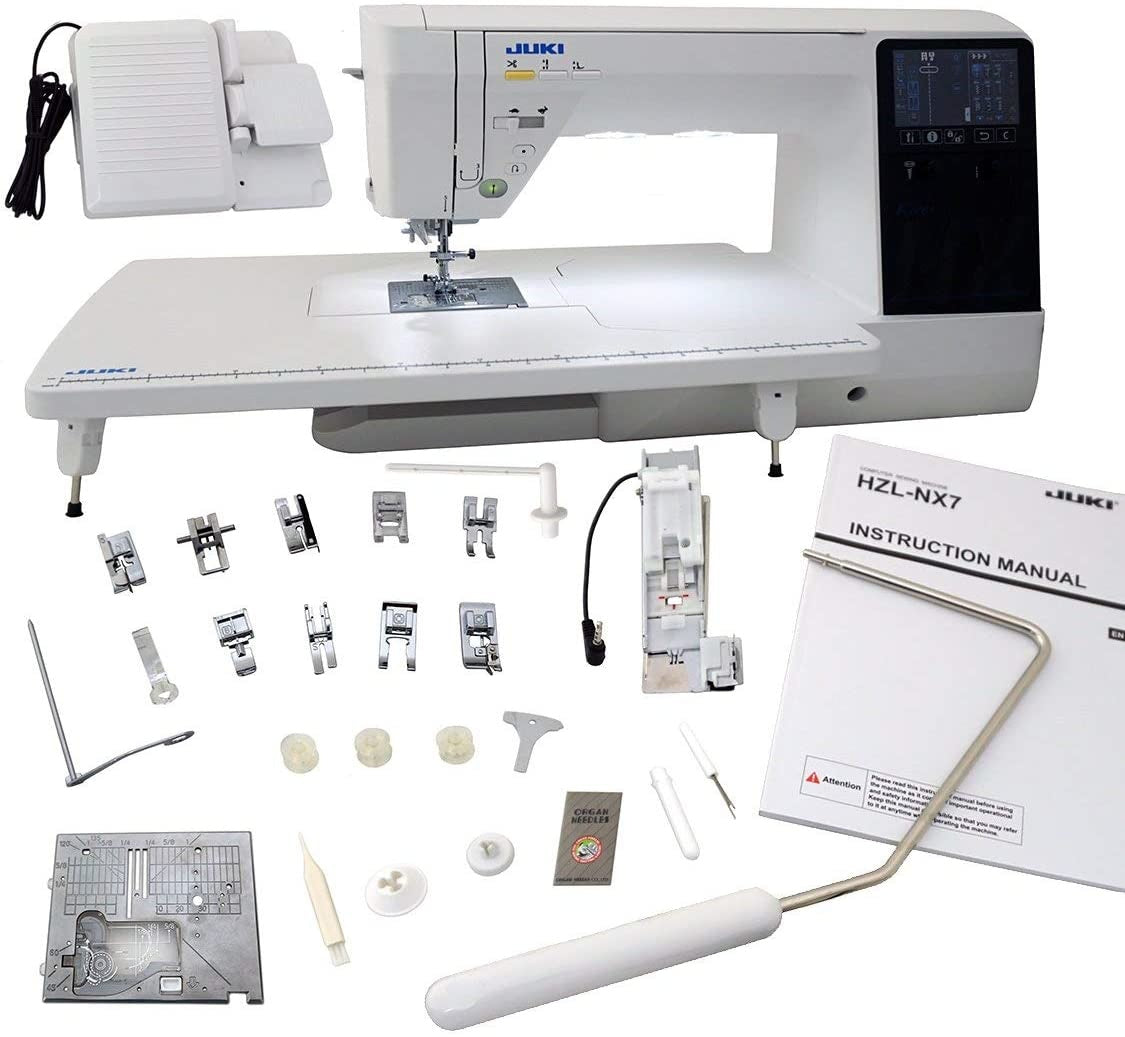

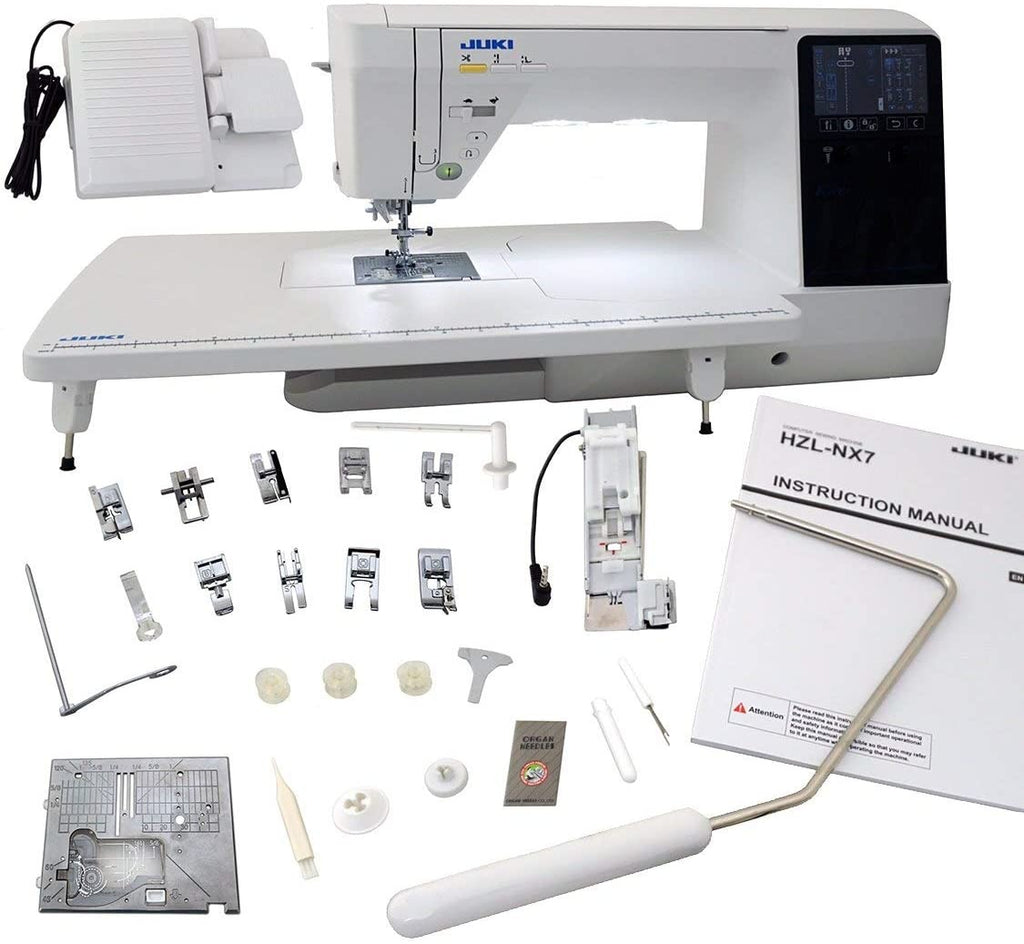

Accessories
- Standard presser foot (A)
- Straight stitch presser foot（S
- Zipper presser foot (B)
- Overcasting presser foot (C)
- Blind stitch presser foot (D)
- Buttonhole presser foot (E)
- Manual buttonhole presser foot (I)
- Open toe presser foot (O)
- Patchwork presser foot (P)
- 7mm presser foot（7)
- Quilt presser foot(for Ruler) (Q)
- Throat plate for straight stitch/Straight stitch feed dog/Touch pen/Bobbin (4)
- Needle set HA X 1 # 11 (1):# 14 (1):# 16 (1):for knit # 11 (1)
- Quilt guide
- Auxiliary spool pin
- T-shape screwdriver
- Ripper
- Cleaning brush
- Spool cap (large)
- Spool cap (Middle)
- Spool cap (Small)
- Foot Controller
- Knee-lifting lever
- Power cord

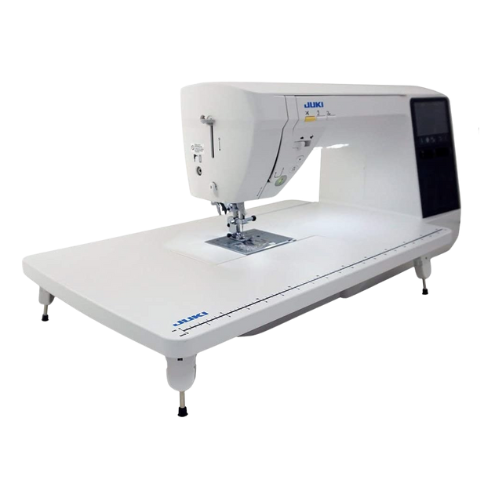

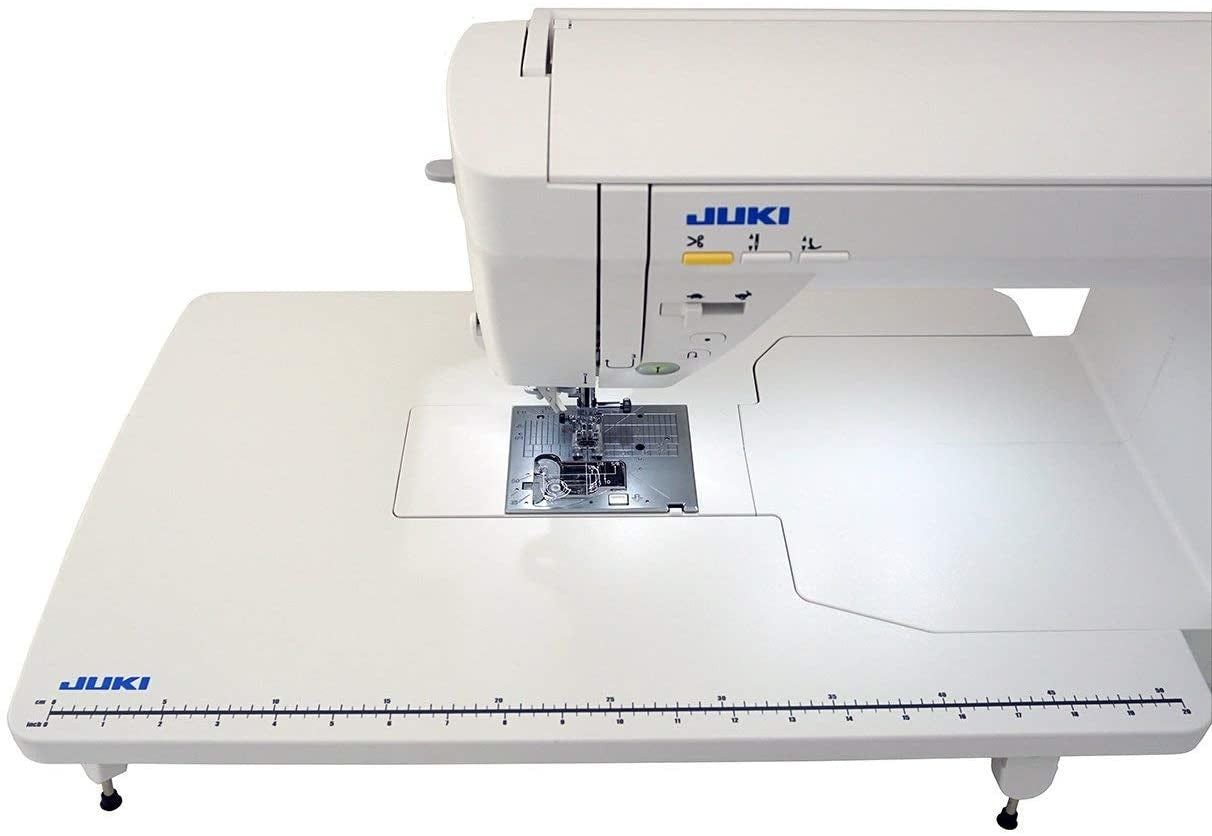

- Wide table
- Soft case
- Instruction manual
