The hybrid printer designed for versatility, built for reliability.

Since 2005, Brother has been known for making garment printers designed from the ground up. We manufacture our own firmware, software and print heads. Coupled with our specially formulated inks and advanced features, the GTXpro hybrid DTG/DTF printer provides a powerful tool to help you to grow your business.

Download GTXpro Brochure
Alt image

  • Overview

  • Specs

  • Supplies

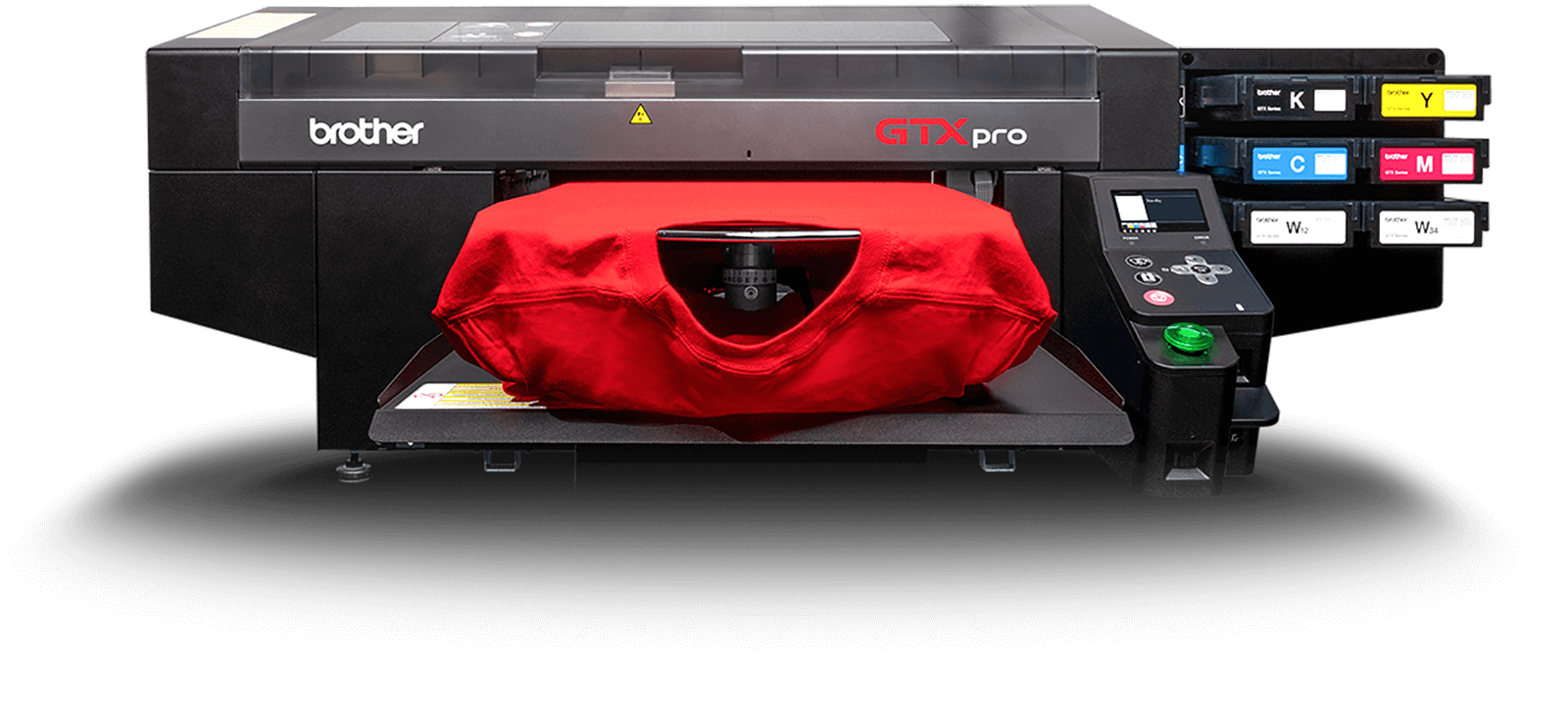

The base model DTG/DTF printer designed for start-ups and expansions

Start your production right with the GTXpro’s user friendly operation and be ready to scale your business when you need to. A hybrid Direct to Garment and Direct to Film printer, the GTXpro gives you the best of both worlds, delivering the versatility you need to expand your customer base. Intelligent Ink Technology offers brilliant colour reproduction with less waste. The industrial grade construction delivers on reliable performance.

Dual Purpose Printing

Take advantage of both Direct to Garment and Direct to Film technology for versatile applications on various substrates.

Speed and Efficiency

The quicker you get products to market, the sooner you can start turning a profit. Accelerate your production with the GTXpro, delivering prints faster than ever before.

Precision Printing

Never sacrifice print quality for output speed. With a print resolution of 1200 x 1200 dpi combined with cutting edge Innobella Textile inks, your designs can incorporate the entire colour spectrum and even the most miute details will print with fantastic clarity.

One-Pass Printing

Print almost anything in a single pass with stacked white ink and CMYK channels.

Simplified Maintenance

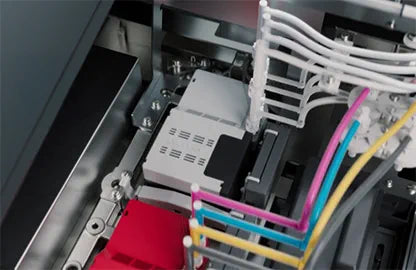

Enjoy hassle-free maintenance. The standard wet capping station minimises clogged nozzles while the white ink circulation system keeps the system primed and ready to print.

Versatile Printing

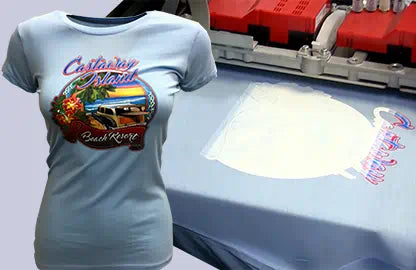

Expand your printing possibilities with the GTXpro's ability to print over seams, across zippers, and on various garment types.

Expanded Print Area

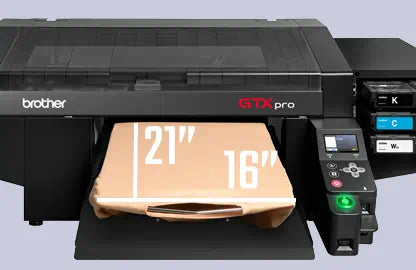

Make a statement with larger designs, thanks to the GTXpro's maximum print size of 16" x 21" and adjustable platen height system.

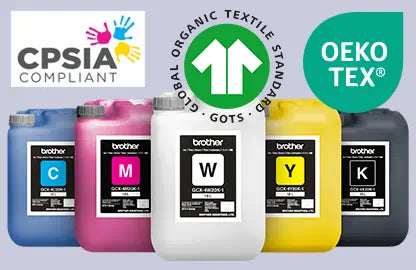

Environmentally Friendly Printing

Embrace sustainability with eco-friendly Innobella Textile inks, certified for environmental safety, and packaged with replaceable pouches to minimise waste.

Confident Printing

Ensure lasting results with Innobella Textile inks, proven durable and washable with scores of $.0 or higher on AATCC wash tests, backed by Brother's comprehensive warranty and expert support.

Printing Method



Direct inkjet garment printer
Title

Machine Size




55”(W) x 51”(D) x 21.7”(H) (1400mm x 1300mm x 550mm)
Title

Machine Weight



265lb (approx.120kg) including platen; not including the stand
Title

Platen Sizes

Adult Platen

14“ x 16“ / 35,6cm x 40,6cm

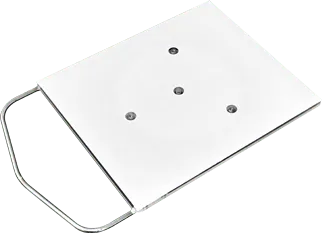

Youth Platen

10“ x 12“ / 25,4cm x 30,5cm

Baby Platen

7“ x 8“ / 17,8cm x 20,3cm
Title

Included Platen Size



14” x 16” (35,6cm x 40,6cm)
Title

Ink Type

Water-based pigment ink
Title

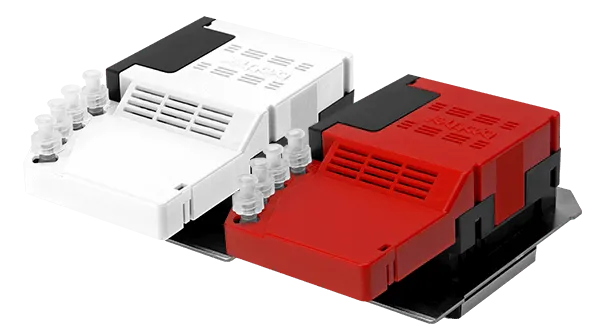

Ink-Head Type

On demand piezo head
Title

Number of Ink-Heads



2 print heads / 8 ink channels
Title

Print Resolution



1200 dpi x 1200 dpi
Title

Print Mode



Single or double for CMYK. Underbase and highlight for white.
Title

Environment

Title

Data Output



Printer driver (USB, File output, LAN)
Title

Power Supply



AC 100V-240V, 50/60Hz ± 1Hz
Title

Power Consumption



0.8A(average) (Reference: 0.3A - during circulation)
Title

Ink Cure



Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.
Title

Pre-treatment



Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.
